Question

What is CIE color space? CIE color space explained

Answer 1

CIE Color Space is a series of color representation systems developed by the Commission Internationale de l'Éclairage (CIE) based on the visual characteristics of the human eye.

It aims to provide a unified framework for the scientific measurement, standardization and communication of color.

Its core goal is to describe how the human eye perceives color through a mathematical model and eliminate the influence of devices or media on color presentation. The following are the key points:

1. Core Concepts

Based on the human eye visual model: The CIE color space is based on the response curves of the three types of cone cells in the human eye (sensitive to red, green and blue light) and constructs color matching functions (CMFs) through experimental data.

Device independence: Unlike color spaces such as RGB and CMYK that rely on specific devices (such as monitors and printers), the CIE space is a theoretical "standard observer" model that is suitable for color consistency across devices.

2. Main CIE color spaces

(1) CIE XYZ (1931)

Basic space: All other CIE color spaces are built on this. Coordinate axes: X, Y, and Z represent the tristimulus values, where Y corresponds to luminance and X and Z are related to chromaticity. Chromaticity diagram:

By converting XYZ to xyY coordinates, the CIE 1931 chromaticity diagram can be plotted, showing the full range of colors visible to the human eye (horseshoe-shaped curve).

(2) CIE LAB (Lab*) Perceptual uniformity: Designed to approximate the human eye's perception of color differences, that is, the color difference (ΔE) is linearly related to the visual difference.

Coordinate axes: L*: Lightness (0 = black, 100 = white). a*: Red-green axis (+a = red, -a = green). b*: Yellow-blue axis (+b = yellow, -b = blue). Applications: Color management, printing, image processing (such as Lab mode in Photoshop).

(3) CIE LUV (Luv*) Similar to Lab: but more suitable for color representation of display devices (such as TVs), especially more uniform perception in the blue area.

(4) CIE xyY Separation of chromaticity and brightness: xy represents chromaticity coordinates (excluding the influence of brightness), and Y represents brightness. Application: Analyze color purity or compare the color temperature of different light sources.

3. Why is the CIE color space important? Standardization: Provides a common language for color science to avoid misunderstandings caused by device differences. Color management: Serves as the basis for ICC (International Color Consortium) color profiles to ensure color consistency across different devices (such as cameras, monitors, and printers).

Research and industry: Used in lighting design, display calibration, textile color matching, food color analysis, and other fields.

4. Example: Converting from RGB to CIE XYZ

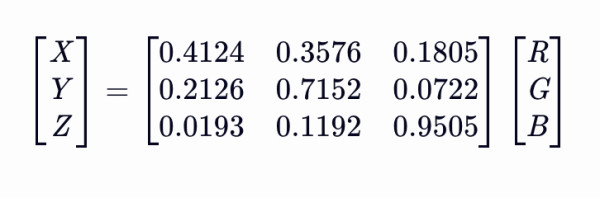

If the RGB value of a color is known (normalized to [0, 1] first), it can be converted to XYZ using the following matrix (the specific matrix depends on the RGB color space, such as sRGB):

5. Common Misconceptions

CIE ≠ Display Color Space: The CIE color space is a theoretical model, while sRGB, Adobe RGB, and other color spaces are device-specific implementations.

Color Gamut Coverage: The CIE XYZ color gamut covers all visible colors, but actual devices (such as monitors) can only cover a subset of it (for example, sRGB covers approximately 35% of CIE 1931).

Answer 2

CIE color spaces are a series of models for describing color defined by the International Commission on Illumination (CIE). These models are primarily used in science and engineering to accurately quantify the colors perceived by the human visual system.

The following are several important CIE color spaces:

1. CIE XYZ: This is one of the earliest CIE color spaces, created in the 1930s. It is based on a color matching experiment in which the three primary colors of light were used to match any visible color. Values in the XYZ color space do not directly correspond to visible colors but are derived through mathematical calculations and serve as the basis for other color spaces.

2. CIE xyY: Derived from the CIE XYZ color space, the xy chromaticity diagram represents hue and saturation without considering brightness. On this diagram, all colors visible to the human eye lie within or around the so-called "horseshoe" curve. The Y value represents brightness, while the x and y values define the color's chromaticity coordinates.

3. CIE L*a*b*: This color space is designed to approximate human visual perception. The L* axis represents lightness, while the a* and b* axes represent the opposing color dimensions from green to red and from blue to yellow, respectively. This color space is designed to be perceptually uniform, meaning that colors equally spaced within it appear roughly the same to the human eye.

4. CIE L*u*v*: Similar to L*a*b*, this color space attempts to linearize human visual perception, but its structure differs, particularly in its representation of hue and saturation. L* also represents lightness, while u* and v* define the color's position on the hue and saturation scales.

CIE color spaces are crucial to fields such as color science, digital image processing, printing technology, and display technology. They provide a standard method for communicating color across media and devices, ensuring consistent and accurate color.

Answer 3

Analysis of the Application and Importance of the CIE Color Space in LED Displays

As a standardized color representation system developed by the International Commission on Illumination, the CIE color space provides a core theoretical foundation for color management, performance optimization, and industry standardization of LED displays. Its integration with LED displays is primarily reflected in the following three aspects:

1. The CIE color space provides a device-independent color benchmark for LED displays.

LED displays achieve full color through the brightness combination of red, green, and blue primary LEDs. However, their actual color gamut is limited by the luminous characteristics of the LED chips and the precision of the driver circuits. The CIE 1931 XYZ color space provides a unified standard for color quantification in LED displays by defining device-independent tristimulus values (X, Y, and Z). For example:

Color Gamut Coverage: The color gamut of an LED display is typically represented by a triangle in the CIE 1931 chromaticity diagram, with its vertices corresponding to the chromaticity coordinates of the red, green, and blue LEDs. The color gamut of high-end full-color LED displays can cover over 90% of the NTSC or sRGB standards. However, due to the characteristics of LED materials, they still cannot fully cover the entire visible light region of the CIE chromaticity diagram.

Color Conversion Accuracy: In the LED display driver chip, the RGB signal must be converted to CIE XYZ values using a 3×3 matrix, and then further converted to luminance (Y) and chromaticity (x, y) parameters. For example, the chromaticity coordinate conversion formula for a P2.5 full-color LED display is:

[x = X/(X+Y+Z), y = Y/(X+Y+Z)]

Where X, Y, and Z are calculated from the RGB values using the conversion matrix. This process ensures color consistency across different batches of LED chips.

2. The CIE Color Space Optimizes Color Temperature and Color Rendering of LED Displays

The color temperature (CCT) and color rendering index (CRI) of LED displays are key indicators of lighting quality, and the CIE color space provides the scientific basis for this:

Color Temperature Adjustment:

The CIE blackbody radiation locus (Planckian locus) defines the color coordinates of light at different color temperatures. LED displays adjust the brightness ratio of the red, green, and blue LEDs to bring their chromaticity coordinates (x, y) close to the locus point corresponding to the target color temperature. For example, a 6500K cool white display needs to maintain chromaticity coordinates near (0.312, 0.329) on the CIE chromaticity diagram.

Improving Color Rendering:

The CIE Color Rendering Index (CRI) quantifies color rendering by comparing the color differences between an object illuminated by a test light source and a standard light source (such as a blackbody radiator). LED display manufacturers optimize phosphor formulations (such as YAG:Ce³⁺) or employ RGB primary color mixing technology to achieve CRI values above 80, meeting the color fidelity requirements of commercial advertising, stage performances, and other scenarios.

3. The CIE color space promotes industry standardization and quality control for LED displays.

Color gamut standardization:

The CIE, in collaboration with the International Electrotechnical Commission (IEC), has developed color gamut testing standards for LED displays (such as IEC 62679), requiring manufacturers to clearly indicate the color gamut coverage (e.g., sRGB 95%, DCI-P3 85%) in product specifications. For example, a color gamut coverage test report for a certain brand's P3 full-color LED display shows that its Rec. 2020 color gamut coverage is 72%, meeting 4K ultra-high-definition display standards.

Color Difference Control:

The CIE LAB color space provides a quantitative tool for measuring color differences in LED displays using three components: L (lightness), a (red-green axis), and b* (yellow-blue axis). During production, manufacturers use spectrophotometers to calibrate LED displays point by point to ensure a ΔE (color difference) value less than 2, avoiding color deviations noticeable to the human eye. For example, factory inspection data for a certain fine-pitch LED display showed a maximum ΔE value of 1.8 and an average ΔE value of 0.9, meeting professional display standards.

Lifespan and Stability Assessment:

CIE standard illuminants (such as D65) are used to simulate the color degradation characteristics of LED displays over long-term use. Through accelerated aging tests (such as 85°C/85%RH high-temperature and high-humidity testing), manufacturers can predict the color coordinate offset of LED displays (e.g., Δx ≤ 0.003, Δy ≤ 0.003) and optimize driver circuit design accordingly.

4. Typical Application Case: Innovative Application of the CIE Color Space in Micro LED Displays

Micro LED, as a next-generation display technology, features a pixel pitch less than 0.1mm, placing even higher demands on color accuracy. One manufacturer, in developing a 0.05mm pitch Micro LED display, utilized the CIE 1931 XYZ color space combined with machine learning algorithms, achieving the following breakthroughs:

Dynamic Color Gamut Expansion: By real-time adjusting the brightness ratio of RGB sub-pixels, the color gamut coverage is increased from 100% of sRGB to 90% of BT.2020, meeting the requirements of 8K HDR display.

Color Uniformity Optimization: Utilizing the ΔE value of the CIE LAB color space, each Micro LED chip is independently calibrated, reducing the overall color non-uniformity (MCU) of the screen from 5% to 1.2%.

Conclusion

The CIE color space has become a core pillar of LED display technology development by providing a device-independent color benchmark, quantifying color temperature and color rendering indicators, and promoting industry standardization.

With the rise of new technologies such as Micro LED and quantum dot LED, the CIE color space will continue to play a key role in improving color accuracy and dynamic color gamut management, helping LED displays evolve towards higher image quality and a wider color gamut.

Answer 4

The CIE color space for LED displays is based on the CIE 1931 XYZ color space. Through mathematical modeling, it maps the human eye's perception of the three primary colors (red, green, and blue) into tristimulus values (X, Y, and Z). The Y component represents brightness, while the X and Z components are related to chromaticity. These values can be further converted to x and y coordinates in the CIE xyY chromaticity diagram to independently describe hue and saturation.

This space provides a device-independent, unified standard for LED color calibration. For example, it precisely defines the color temperature (CCT) of white LEDs and the color gamut of color LEDs using coordinates on the chromaticity diagram. It also supports the calculation of conversion matrices from RGB to XYZ, ensuring that different LED devices display colors that match the human eye's perceptual characteristics.

In addition, combining it with the blackbody radiation locus (Planckian locus) allows analysis of the color rendering index (CRI) potential of LEDs, while derivative spaces such as CIE Lab are used to quantify color differences (ΔE). Ultimately, this allows for comprehensive optimization of LED displays, from color gamut coverage to color accuracy control.
